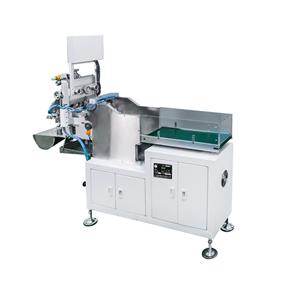

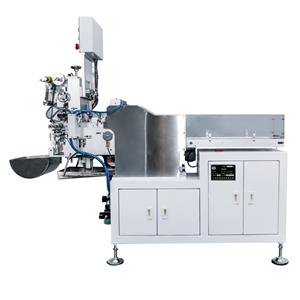

Automatic Hot Foil Stamping Machine

Brand: Chuangyan

Product origin: Guangdong

1.Auto feeding, auto stamping, accuracy, labor-saving
2. Cost-saving,non-stop working
3.Suitable for most toothbrush
4.Easy to adust
5.Easy to operate

Automatic Hot Foil Stamping Machine

Hot Stamping Foil Machine For Toothbrush

Hot Stamping Foil for toothbrush machine


Product Specification:

Technecial Parameter
Capacity

300-500pcs

Speed

25pcs/min

Voltage

220V

Power

0.6KW

Pressure

0.5Mpa


1.Centering Adjustment

Adjust the distance according to the length of the toothbrush (Adjust the blut block). The distance is 2mm longer than the length of the toothbrush.

for toothbrush machine Hot Stamping Foil


2.Head width adjustment

Adjust the width of the baffle according to the length of the toothbrush handle.

Loosen the screw 1, then adjust screw 2 to adjust the distance between the baffles 3. The distance is 2mm longer than the length of the toothbrush. Then tighten the screw 1.

Hot Stamping Foil for toothbrush machinefor toothbrush machine Hot Stamping Foil


3.Adjustment of turning mechanism

The position of the turning device needs to be adjusted according to the length of the toothbrush.

Loosen screw 1 and adjust the upper compression mechanism.

Loosen screw 2 and adjust screw 3 to change the  position of the turning device  to the middle position of the toothbrush handle.

Tighten the screw 2.

Hot Stamping Foil for toothbrush machinefor toothbrush machine Hot Stamping Foil


4.Vertical turning device

Loosen the screw3, adjust block1 and block2 according to the bending degree of the toothbrush handle.

Hot Stamping Foil for toothbrush machinefor toothbrush machine Hot Stamping Foil


5.Lift height adjustment

Loosen the screw1, adjust the lift block according to the bending degree of the toothbrush handle.


Hot Stamping Foil for toothbrush machine


6.Toothbrush Head correction device adjustment

Adjust the block1 and block2  according to the bending degree of the toothbrush handle.

for toothbrush machine Hot Stamping Foil


7.Up and down, left and right adjustment

Rotate the handwheel 1 to move the stamping head to  the left or to the right

Rotate the handwheel 2 to move the stamping head to  the up or to the down

Hot Stamping Foil for toothbrush machine



Company Introduction:

for toothbrush machine Hot Stamping Foil


Certificate Display:

Hot Stamping Foil for toothbrush machine


Our Partners:

for toothbrush machine Hot Stamping Foil

Exhibition:                                                                                                               Hot Stamping Foil for toothbrush machine

Packing & Delivery:

for toothbrush machine Hot Stamping Foil

Hot Stamping Foil for toothbrush machine





Packaging
Size1250(L) * 550(W) * 1250(D) (mm)
Weight175kg
Packaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


FAQ:

1. Q: Are you a factory or trade company?
A: We are a factory.

2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!

3.Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4.Q: How can I get some samples?
A: We are honored to offer you samples.

5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior service!
