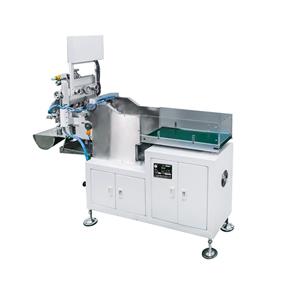

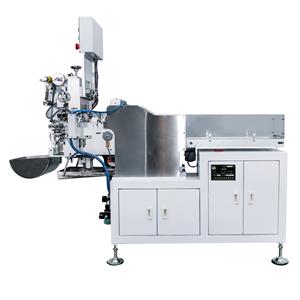

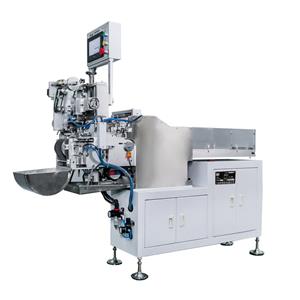

Tooth Brush Hot Foil Stamping Machine
Brand: Chuangyan
Product origin: Guangdong
1.Auto feeding, auto stamping, accuracy, labor-saving
2. Cost-saving，non-stop working
3.Suitable for most toothbrush
4.Easy to adust
5.Easy to operate
Hot Stamping Foil Machine For Toothbrush
Product Specification:
| Technecial Parameter | |
| Capacity | 300-500pcs |
Speed | 25pcs/min |
Voltage | 220V |
Power | 0.6KW |
Pressure | 0.5Mpa |
1.Centering Adjustment
Adjust the distance according to the length of the toothbrush (Adjust the blut block). The distance is 2mm longer than the length of the toothbrush.
2.Head width adjustment
Adjust the width of the baffle according to the length of the toothbrush handle.
Loosen the screw 1, then adjust screw 2 to adjust the distance between the baffles 3. The distance is 2mm longer than the length of the toothbrush. Then tighten the screw 1.
3.Adjustment of turning mechanism
The position of the turning device needs to be adjusted according to the length of the toothbrush.
Loosen screw 1 and adjust the upper compression mechanism.
Loosen screw 2 and adjust screw 3 to change the position of the turning device to the middle position of the toothbrush handle.
Tighten the screw 2.
4.Vertical turning device
Loosen the screw3， adjust block1 and block2 according to the bending degree of the toothbrush handle.
5.Lift height adjustment
Loosen the screw1， adjust the lift block according to the bending degree of the toothbrush handle.
6.Toothbrush Head correction device adjustment
Adjust the block1 and block2 according to the bending degree of the toothbrush handle.
7.Up and down, left and right adjustment
Rotate the handwheel 1 to move the stamping head to the left or to the right
Rotate the handwheel 2 to move the stamping head to the up or to the down
Company Introduction:
Certificate Display:
Our Partners:
Exhibition:
Packing & Delivery:
| Packaging | |
| Size | 1250(L) * 550(W) * 1250(D) (mm) |
| Weight | 175kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
FAQ:
