Toothbrush Making Machine
Brand: Chuangyan
Product origin: Guangdong

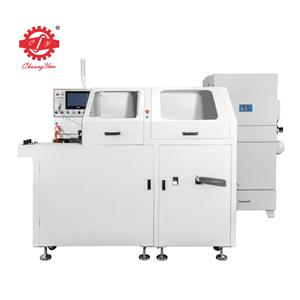

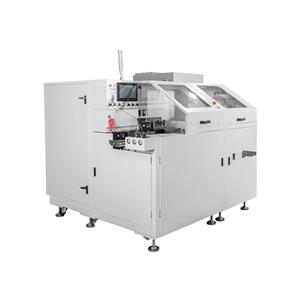

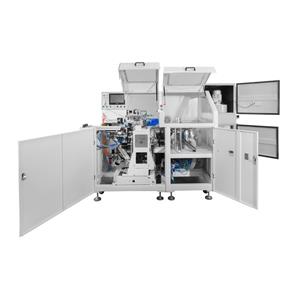

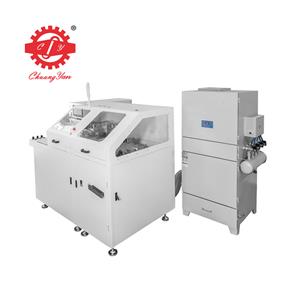

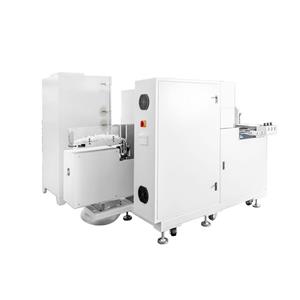

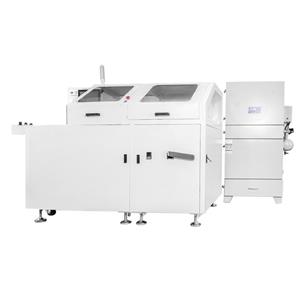

ZMJ8M-C3 Toothbrush Tufting & Trimming Machine
1. Using German CNC technology to develop an automatic intelligent CNC scanning hole coordinate touch screen LCD computer control system
2. Using original Japanese Fuji 6-axis servo motor and 8-axis variable frequency motor
3. Double-station trimming device (flat and wave cutter)
4. Eight-level omnidirectional positive and negative cone swing rotary imported steel grinding disc (rounding rate as high as 90%)
5. Full automatic manipulator handle device and universal turret (easy to replace the handles)
6. Using German FESTO valve, INA, AFG, DURBAL and Japanese NSK, lKO and other brand bearings.
7. The fully closed loop system has strong stability, high repeat positioning accuracy, easy operation, and strong anti-interference performance
ZMJ8M-C3 Toothbrush Tufting & Trimming Machine
Features:
1. Using German CNC technology to develop an automatic intelligent CNC scanning hole coordinate touch screen LCD computer control system
2. Using original Japanese Fuji 6-axis servo motor and 8-axis variable frequency motor
3. Double-station trimming device (flat and wave cutter)
4. Eight-level omnidirectional positive and negative cone swing rotary imported steel grinding disc (rounding rate as high as 90%)
5. Full automatic manipulator handle device and universal turret (easy to replace the handles)
6. Using German FESTO valve, INA, AFG, DURBAL and Japanese NSK, lKO and other brand bearings.
7. The fully closed loop system has strong stability, high repeat positioning accuracy, easy operation, and strong anti-interference performance.
Product Specification:
| Basic parameters of the whole machine | |||
| Host size: | 197cmX245cmX157cm | Switch: | 32A↑ |
| Vacuum size: | 80cmX80cmX190cm | Power: | 7KW |
| Wooden box size 1: | 200cmX250cmX190cm（Host machine） | Compressed air pressure: | 0.65MPa |
| Wooden box size 2: | 90cmX110cmX205cm（Vacuum） | Intake pipe: | 12MM |
| Net weight: | 1180KG+220KG | Air consumption: | ≥1 ㎡/MIN |
| Gross weight: | 1420KG+280KG | Noise: | 65dB |
| Machine 1: | 131cmX244cmX157cm | Equipment: | Reference manual and equipment operation video |
| Machine 2: | 108cmX133cmX157cm | ||
| Input voltage: | 380V 50-60HZ | ||
Product Detailed：
1. Intelligent CNC computer part
Features:
1 Introduce German CNC technology to develop intelligent CNC scanning hole coordinate technology
2 Adopt American imported CNC CPU chip, P4 dual-core processor
3 Automatic tracking and speed regulation, precise positioning and convenient operation
4 The system is stable and reliable, adapts to different environments, and has strong anti-interference
2. Workbench, Servo Motor Part for Handle Change
Features:
1. The equipment adopts high-precision servo motors imported from Japan
2. Adopt German imported precision C1 double threaded ball screw
3. Designed to never wear, high-precision wear-resistant light rail type, sealed and self-lubricating bearings,
Release the weight of the X-axis table to achieve 850-speed high-speed flocking effect
3.High-speed flocking part
Features:
Adopt German imported materials, through professional technology and high-precision processing equipment Equipped with manufactured hair transplanting heads, hair removal knives, and hair transplanting rods, with high hardness and toughnessGood, strong wear resistance, machining process error ±0.01MM, stable hair transplanting Strong qualitative, high efficiency, strong pulling force, no loose hair
4.Universal fixture
Features:
a universal fixture in the true sense, and can plant all kinds of electrical appliances without tail clamps Movable toothbrush, no need to customize fixtures for each product or special products cannot be produced
5.Axis of rotation
Features: High-precision direct connection to the rotating Z axis (never need to change the belt)
6.Two-color box part&Three-color box part
Features:
1. Widened design to ensure the stability of the amount of wool and increase the production capacity
2. The design of double-pressing hair grooves, pneumatic progressive pressing, to ensure high stability of hair removal, no thinning and no spreading of hair
3. The special metal coating process of the hair groove ensures the best product quality
7.Manipulator: rocker
Features: 1. Rocker arm design, 50% faster than conventional guide rails, quick adjustment
8.Mechanical connecting arm
Features: 1. The mechanical arm is linked, which saves costs in the production and operation of the equipment, and is easy to adjust and change models
9.Grinding disc
Features: 1. Eight-level omni-directional positive and negative dimensional swing type and imported diamond grinding disc, so that the ratio of grinding and rounding is more than 90% higher than that of the national standard
10.Electricity removal device
Features: 1. Design automatic dust removal and static removal device
<img src="https://img.waimaoniu.net/1494/1494-202107121657287026.jpg" style="width: 800px;" width="800" border="0" vspace="0" title="Tufting Machine"" />
Company Introduction:
Certificate Display:
Our Partners:
Exhibition:
Packing & Delivery:
| Packaging | |
| Size | 1250(L) * 550(W) * 1250(D) (mm) |
| Weight | 175kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
FAQ:
1. Q: Are you a factory or trade company?
A: We are a factory.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!
3.Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4.Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior service!
